FEATURES-SPECIFICATIONS- F i l e s E 10 514 a n d E 9 17 9 3 ( M a r i n e)
C e r t i f i e d - F i l e L R 117 13
Class I, Div. 1 & 2, Groups C,D
Class I, Zones 1 & 2, Groups llB, llA
Class II, Div. 1 & 2, Groups E,F,G
Class III, Div. 1 & 2
Suitable for wet locations
UL Marine Rated (US Only)
NEMA 3, 4, 4X
Factory Sealed
Series Constant
Lamp Base
M—Medium Base
Q—Quad-Pin Base
Lamp Type
I—Incandescent
F—Fluorescent (lamp included)
S—HPS
H—MH
Voltage @ 60 Hertz j
0—Quadri-Volt
(120, 208, 240, 277)
1—120
4—277
5—480
6—347 Canada (70,100MH/HPS)
30—120-277 50/60 Hz
EQF Series only
Mounting Type
A2—3/4” Pendant
A3—1” Pendant
X2—3/4” Ceiling
X3—1” Ceiling
B2—3/4” Bracket
B3—1” Bracket
D4—1-1/4”/1-1/2” Stanchion
Lamp Wattage
15—150W, A-21, INC
20—300W, PS-25, INC
30—300W, PS-30, INC
32—Quad-Pin FLuor
42—Quad-Pin FLuor
52—Quad-Pin FLuor (2 x 26)
64—Quad-Pin FLuor (2 x 32)
84—Quad-Pin FLuor (2 x 42)
35—35W, HPS
05—50W, HPS, MH
07—70W, HPS, MH
10—100W, HPS, MH
15—150W, HPS (120V only)
Guard
G— Omit G if guard is not required
Options
ML— UL Marine Listing for EMI.
Standard on EMS, EMM and
EMH. Not available on
EBF, EQF
SU103—Assembled w/Lamp
E 0 0 00 0 00 0 - 00 (CEN)*
Applications
HostileLite® EM & EQ Series
fixtures are designed for installations where
moisture, dirt, dust, corrosion and vibration
may be present, or NEMA 3 and 4x areas
where wind, water, snow or high ambients
can be expected. They can be used in
locations made hazardous due to the
presence of flammable or explosive gases,
vapors and combustible dusts as defined by
the NEC.
applications include classified areas such
as paint manufacturing plants, ammunition
facilities, oil and gas producing and refining
plants, off-shore and dockside installations,
tank farms, pipeline pumping stations and
marine loading and fuel transfer terminals.
Features
• Four light sources—Incandescent,
compact fluorescent, high pressure
sodium and metal halide
• Mounting choice—Pendant, ceiling, 25 ̊
stanchion or 90 ̊ wall mount, all with
“wireless” design that allows fast, easy
fixture installation
• Factory sealed—No external seal needed.
Simply wire mounting cap and thread on
fixture to install
• Compact size—Medium base
incandescent and HID lamps, plus PL
fluorescent lamps allow smaller fixture
design
• Corrosion resistant—Copper-free
aluminum die-cast construction. Baked
powder epoxy finish, electrostatically
applied. Exposed hardware is 316 grade
stainless steel
Accessories
• Available with or without guard, standard
dome or 25 ̊ angle reflector, exit sign and
inner colored globes
Compliances
• UL-844 Electric Lighting Fixtures for use
in Hazardous Locations
• UL Marine Type Electric Lighting Fixtures
• UL-1598 Standard for Fluorescent,
Incandescent and HID fixtures
• CSA C22.2 no. 137-M1981 Electric
Luminaires for use in Hazardous
Locations
• NEMA 3, 4, 4X, 7CD, 9EFG
FEATURES-SPECIFICATIONS
Class I, Div. 1 & 2, Groups C,D
Class I, Zones 1 & 2, Groups llB, llA
Class II, Div. 1 & 2, Groups E,F,G
Class III, Div. 1 & 2
Suitable for wet locations
Marine Rated (US Only)
NEMA 3, 4, 4X
Factory Sealed
j See Hazardous Location Application Data on pages L150 - L151 for specific suitabilities.
k For 1” pendant, ceiling and wall hubs, substitute “3” for “2” in catalog number; example: EQF2630A3G.
l Stanchion conduit hub size supplied is 1-1/2” with 1-1/2” to 1-1/4” reducer for 1-1/4” mounting. (refer to catalog logic).
m Luminaire catalog numbers include guards. To order luminaire without guard, omit last letter “G” from catalog number.
n EQF 26-42 Watt fixtures use a tank extension ring and are 2.5” taller than EBF fixtures.
NOTE: Reflectors must be ordered separately (see page L146). All luminaires are designed for mounting with lamp in base up position.
Pendant Ceiling Wall Stanchion
- F i l e s E 1 0 5 1 4 a n d E 9 1 7 9 3 ( M a r i n e )
C e r t i f i e d - F i l e L R 117 13
EM 60 – 300W MEDIUM BASE INCANDESCENT j
LAMP
TYPE LAMP/WATTS LAMP SIZE CATALOG NUMBER m
PENDANT 3/4”k CEILING 3/4”k WALL 3/4”k STANCHION 1-1/4” l
INC
60, 75, 100, 150 A-19, A-21 EMI15A2G EMI15X2G EMI15B2G EMI15D4G
100, 150, 200, 300 A-23, PS-25 EMI20A2G EMI20X2G EMI20B2G EMI20D4G
200, 300 PS-25, PS-30 EMI30A2G EMI30X2G EMI30B2G EMI30D4G
EQF 26 - 42W WORLD VOLTAGE QUAD - PIN COMPACT FLUORESCENT j
LAMP
TYPE
QUAD-PIN FLUORESCENT CATALOG NUMBER m
LAMP INCLUDED LINE VOLTAGE PENDANT 3/4”k CEILING 3/4” k WALL 3/4” k STANCHION 1-1/4”l
COMPACT
FLUOR.
26 Watt5 120-277VAC 50-60Hz EQF2630A2G EQF2630X2G EQF2630B2G EQF2630D4G
32 Watt 5 120-277VAC 50-60Hz EQF3230A2G EQF3230X2G EQF3230B2G EQF3230D4G
42 Watt 5 120-277VAC 50-60Hz EQF4230A2G EQF4230X2G EQF4230B2G EQF4230D4G
52 Watt (2 X 26) 120-277VAC 50-60Hz EQF5230A2G EQF5230X2G EQF5230B2G EQF5230D4G
64 Watt (2 X 32) 120-277VAC 50-60Hz EQF6430A2G EQF6430X2G EQF6430B2G EQF6430D4G
84 Watt (2 X 42) 120-277VAC 50-60Hz EQF8430A2G EQF8430X2G EQF8430B2G EQF8430D4G
FEATURES -SPECIFICATIONS
Class I, Div. 1 & 2, Groups C,D
Class I, Zones 1 & 2, Groups llB, llA
Class II, Div. 1 & 2, Groups E,F,G
Class III, Div. 1 & 2
Suitable for wet locations
Marine Rated (US Only)
NEMA 3, 4, 4X
Factory Sealed
Pendant Ceiling Wall Stanchion
j See Hazardous Location Application Data on page L150 - L151 for specific suitabilities.
k For 1” pendant, ceiling and wall hubs, substitute “3” for “2” in catalog number; example: EMS351A3G.
l Stanchion conduit hub size supplied is 1-1/2” with 1-1/2” to 1-1/4” reducer for 1-1/4” mounting. (refer to catalog logic).
m Luminaire catalog numbers include guards. To order luminaire without guard, omit last letter “G” from catalog number.
NOTE: Reflectors must be ordered separately (see page L146). All luminaires are designed for mounting with lamp in base up position.
EM 35 - 150W MEDIUM BASE HIGH PRESSURE SODIUM jm
LAMP
TYPE
LAMP
WATTS
ANSI
LAMP TYPE
VOLTAGE
@60 HERTZ
CATALOG NUMBERm
PENDANT 3/4” k CEILING 3/4” k WALL 3/4” k STANCHION 1-1/4”l
HPS
35 S-76 120 EMS351A2G EMS351X2G EMS351B2G EMS351D4G
50 S-68 120, 208, 240, 277 EMS050A2G EMS050X2G EMS050B2G EMS050D4G
70 S-62 120, 208, 240, 277 EMS070A2G EMS070X2G EMS070B2G EMS070D4G
70 S-62 480 EMS075A2G EMS075X2G EMS075B2G EMS075D4G
100 S-54 120, 208, 240, 277 EMS100A2G EMS100X2G EMS100B2G EMS100D4G
100 S-54 480 EMS105A2G EMS105X2G EMS105B2G EMS105D4G
150 S-55 120 EMS151A2G EMS151X2G EMS151B2G EMS151D4G
EM 50 -100W MEDIUM BASE METAL HALIDE jm
LAMP
TYPE
LAMP
WATTS
ANSI
LAMP TYPE
VOLTAGE
@60 HERTZ
CATALOG NUMBER m
PENDANT 3/4”k CEILING 3/4”k WALL 3/4”k STANCHION 1-1/4”l
MH
50 M-110 120, 208, 240, 277 EMH050A2G EMH050X2G EMH050B2G EMH050D4G
70 M-98 120, 208, 240, 277 EMH070A2G EMH070X2G EMH070B2G EMH070D4G
100 M-90 120, 208, 240, 277 EMH100A2G EMH100X2G EMH100B2G EMH100D4G

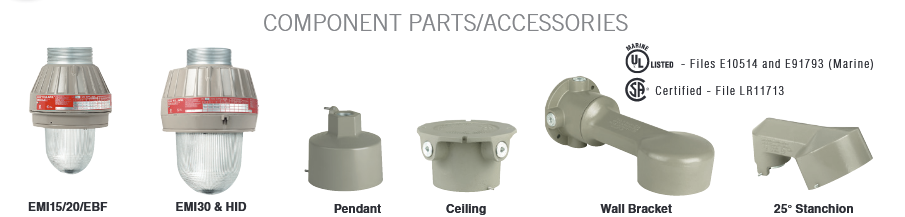

Housing, Globe and
Globe Support Assemblies
INCANDESCENT
KILLARK LIGHTING
EM/EQ SERIES
COMPONENT PARTS/ACCESSORIES
Angle DomeStandard Dome
Guards are cast of copper-free aluminum with
electrostatically applied epoxy/polyester finish.
* Consult factory for 52, 64 and 84 Watt availability.
j Assemblies may be ordered with the CEN (CENELEC)
suffix. See page L148 for more information.
k Adapters for discontinued Killark “H” Series and
Crouse Hinds® available.
l UL fixture rating; socket rated 600V.
Wall Bracket 25° Stanchion
EMG1 EMG2 EACk
Pendant CeilingEMI15/20/EBF EMI30 & HID
Reflectors are aluminum with white finish.
*1-1/2” furnished with 1-1/2”-1-1/4” reducer
EZCUP
Close up plug
for EZ mounting
boxes. Used for
maintenance when
fixture is removed
for service.
HIC-BEIGE
replacement
wiring plug
for EZBx
Wall Bracket
FACTORY SEALED
Class I, DIV. 1 BCD
Class II, DIV. 1&2 EFG
CLASS III
NEMA 3, 4X IP66
*40 ̊C ambient T3 Rated
MOUNTING BOXES
CATALOG NUMBER HUB SIZE
PENDANT CEILING BRACKET STANCHION
EZA2 EZX2 EZB2 — 3/4”
EZA3 EZX3 EZB3 — 1”
— — — EZD4* 1-1/4”/1-1/2”*
INCANDESCENT
CATALOG
NUMBER LAMP TYPE WATTS VOLTS l
EMI15
A-19 60, 75 250 MAX.
VAC
A-19, A-21 100
A-21 150
EMI20
A-23, PS-25 150 250 MAX.
VAC
A-23, PS-25 200
PS-25 300
EMI30 PS-25 200 250 MAX.
VACPS-30 300
FLUORESCENT WITH LAMP(S)*
CATALOG
NUMBER
ANSI
LAMP TYPE WATTS VOLTS
EQF2630
Quad Pin
Fluorescent
26
120-277
VAC
50-60Hz
EQF3230 32
EQF4230 42
EQF5230 52 (2X26)
EQF6430 64 (2X32)
EQF8430 84 (2X42)
HPS
CATALOG
NUMBER
ANSI
LAMP TYPE WATTS VOLTS
@60HZ
EMS351 S-76 35 120
EMS050 S-68 50 Quad
E M S 0 7 0 S-62 70 Quad
480E M S 0 7 5
E M S 1 0 0 S-54 100 Quad
480E M S 1 0 5
E M S 1 5 1 S-55 150 120
METAL HALIDE
CATALOG
NUMBER
ANSI
LAMP TYPE WATTS VOLTS
@60HZ
EMH050 M-110 50 Quadri-Volt
EMH070 M-98 70 Quadri-Volt
EMH100 M-90 100 Quadri-Volt
REFLECTORS
CATALOG NUMBER SERIES
STANDARD DOME ANGLE
ERSD15 ERA15 EMI15/EMI20
EQF
ERSD30 ERA30
EMI30
EMS
EMH
EQF (52, 64, 84)
PHOTO CELL FIELD KITS
WITH HKB - GL BOX AND COVER
CATALOG NUMBER VOLTS
VMHKPC1 120VAC
VMHKPC2 208-277VAC
VMHKPC3 347VAC
GUARDS
CATALOG
NUMBER SERIES LAMP TYPE
EMG1
EMI15 INC
EMI20 INC
EQF (26, 32, 42) Quad-Pin
EMG2
EMI30 INC
EMS HPS
EMH MH
ESX Strobe
EQF (52, 64, 84) Quad-Pin
Housing, Globe and
Globe Support Assembliesj
EM/EQ SERIES
COMPONENT PARTS/ACCESSORIES
Angle DomeStandard Dome
Guards are cast of copper-free aluminum with
electrostatically applied epoxy/polyester finish.
* Consult factory for 52, 64 and 84 Watt availability.
j Assemblies may be ordered with the CEN (CENELEC)
suffix. See page L148 for more information.
k Adapters for discontinued Killark “H” Series and
Crouse Hinds® available.
l UL fixture rating; socket rated 600V.
Wall Bracket 25° Stanchion
EMG1 EMG2 EACk
Pendant CeilingEMI15/20/EBF EMI30 & HID
Reflectors are aluminum with white finish.
*1-1/2” furnished with 1-1/2”-1-1/4” reducer
EZCUP
Close up plug
for EZ mounting
boxes. Used for
maintenance when
fixture is removed
for service.
HIC-BEIGE
replacement
wiring plug
for EZBx
Wall Bracket
FACTORY SEALED
Class I, DIV. 1 BCD
Class II, DIV. 1&2 EFG
CLASS III
NEMA 3, 4X IP66
*40 ̊C ambient T3 Rated
MOUNTING BOXES
CATALOG NUMBER HUB SIZE
PENDANT CEILING BRACKET STANCHION
EZA2 EZX2 EZB2 — 3/4”
EZA3 EZX3 EZB3 — 1”
— — — EZD4* 1-1/4”/1-1/2”*
INCANDESCENT
CATALOG
NUMBER LAMP TYPE WATTS VOLTS l
EMI15
A-19 60, 75 250 MAX.
VAC
A-19, A-21 100
A-21 150
EMI20
A-23, PS-25 150 250 MAX.
VAC
A-23, PS-25 200
PS-25 300
EMI30 PS-25 200 250 MAX.
VACPS-30 300
FLUORESCENT WITH LAMP(S)*
CATALOG
NUMBER
ANSI
LAMP TYPE WATTS VOLTS
EQF2630
Quad Pin
Fluorescent
26
120-277
VAC
50-60Hz
EQF3230 32
EQF4230 42
EQF5230 52 (2X26)
EQF6430 64 (2X32)
EQF8430 84 (2X42)
HPS
CATALOG
NUMBER
ANSI
LAMP TYPE WATTS VOLTS
@60HZ
EMS351 S-76 35 120
EMS050 S-68 50 Quad
E M S 0 7 0 S-62 70 Quad
480E M S 0 7 5
E M S 1 0 0 S-54 100 Quad
480E M S 1 0 5
E M S 1 5 1 S-55 150 120
METAL HALIDE
CATALOG
NUMBER
ANSI
LAMP TYPE WATTS VOLTS
@60HZ
EMH050 M-110 50 Quadri-Volt
EMH070 M-98 70 Quadri-Volt
EMH100 M-90 100 Quadri-Volt
REFLECTORS
CATALOG NUMBER SERIES
STANDARD DOME ANGLE
ERSD15 ERA15 EMI15/EMI20
EQF
ERSD30 ERA30
EMI30
EMS
EMH
EQF (52, 64, 84)
PHOTO CELL FIELD KITS
WITH HKB - GL BOX AND COVER
CATALOG NUMBER VOLTS
VMHKPC1 120VAC
VMHKPC2 208-277VAC
VMHKPC3 347VAC
GUARDS
CATALOG
NUMBER SERIES LAMP TYPE
EMG1
EMI15 INC
EMI20 INC
EQF (26, 32, 42) Quad-Pin
EMG2
EMI30 INC
EMS HPS
EMH MH
ESX Strobe
EQF (52, 64, 84) Quad-Pin
Housing, Globe and
Globe Support Assembliesj
EM/EQ SERIES
REPLACEMENT PARTS/ACCESSORIES
Hazardous Locations Exit Sign
Applications
For use in hazardous areas to mark exits
over doorways and in hallways.
Features
• Three sided illuminated sign visible from all
three sides
• EXIT printed in 6” high red letters
with 3/4” strokes as required by OSHA.
Sign has open bottom providing light on
exit area while illuminating the panel
Used to modify EMI20 Series only fixtures to accept a
colored inner globe. The kit includes the globe plus an
adapter assembly and mounting instructions.
l Maximum lamp size A-21 150 Watt.
Replacement Globe & Support AssembliesExit Sign Accessory
EM Series
j EMGs1, EMGS3 are internally fluted glass.
k EMGS2 is smooth clear glass used for ESX strobe.
* EQF to 42W
Male
EZCB
Female
EZTB
REPLACEMENT GLOBE AND GLOBE SUPPORTS
CATALOG NUMBERj SERIES LAMP TYPE MAX. WATTAGE
EMGS1
EMI15 INC 150
EMI20 INC 300
EQF PL Quad-Pin Fluorescent 26, 32, 42
EMGS2 kEMGS3
EMI30 INC 300
EMS HPS 150
EMH MH 100
EQF PL Quad-Pin Fluorescent 52, 64, 84
EXIT SIGN
CATALOG NUMBER DESCRIPTION
HEXA-100
Fits EMI15, EMI20, EQF/EEQ
Series without guard *
(Fixture not included)
0 comments:
Posting Komentar
