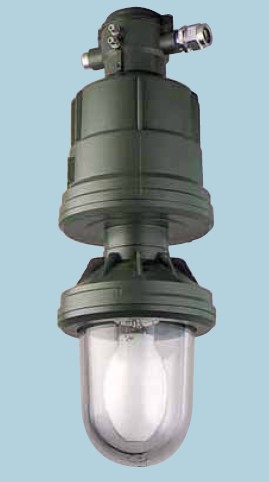

Explossion Proof Technor Italsmea EVde HID Series
EVde-…H.I.D. Series Lighting Fixtures have been designed to house
Built-in control gear for High Intensity Discharge (H.I.D.) Lamps and to
manage the light source, driving it where required by way of suitable
re ectors and refractors.
Due to the corrosion resistant body, cast copper-free aluminium
construction (Cu<0.1%) and tempered glass for lamp compartment,
EVde-…H.I.D. Lighting xtures can provide small dimensions/low weight
combined with
a wide range of wattage: from 50W up to 400W.
The EVde-…H.I.D. solution, with its built-in control gear on plate and
the top side Ex-e Junction box, allows End Users and Concrators to save
almost: 1 Junction Box, 2 cable glands and a minimum of 30 minutes
of man power cost during the light installation process.
Material Copper-free aluminium (Cu<0,1%)
Temperature -50°C to 60°C, See speci c limitations in
the relative tables for lamps typology
IP Rating IP65
Certification
& Approvals
EC-Type Examination Certi cate
INERIS 01ATEX0019X
GOST Certi cate IT. 04. 00510
Standards EN 60079-0 / 60079-1 / 60079-7 / 61241-0 / 61241-1
IEC 60079-0 / 60079-1 / 60079-7 / 61241-0 / 61241-1
Ex-code II 2 GD
Ex d IIC T5 / T4 / T3
Ex tD A21 IP65 T100°C / T135°C / T200°C
Ex de IIC T5 / T4 / T3
Ex tD A21 IP65 T100°C / T135°C / T200°C
According to European Directive 94/9/EC (ATEX)
For Zone 1 / Zone 2, Zone 21 / Zone 22v
Gaskets O-ring made in Nitrile Rubber (NBR)
Surface treatment External polyurethane painting “Standard Cycle” Green RAL 6003
Entries Nr. 2 M25 entries
Hardware and Screw Stainless steel external hardware
Lamps Lighting apparatus EVde series can be equipped with:
High Pressure Sodium, Mercury Vapour, Metal Halide lamps (included)
Lamps Wattage From 50W to 400W
Ballast Ballast technical features depend on lamp type
Rated operation voltage (UE) 230 V
Frequency 50 Hz
Ignitor and Capacitor Ignitor and Capacitor technical features depend on ballast type
Power factor > 0,9
Accessories
Available upon request
GEV-…Protection guard
REV-…Standard re ector made of 99.85 aluminium painted white RAL 9003
REVD-…Dome re ector made of 99.85 polished and anodized aluminium
KFE-…High Bay Re ector made of 99.85 polished and anodized aluminium
VERTEVA-…Prismatic Refractor made of virgin acrylic
Lampholder Ceramic lamp holder
Note Adjustable stainless steel mounting bracket (included), suitable for ceiling; pendant; wall; pole
installation. 4x4sqmm+E mains terminal in Ex-e compartment (included)
